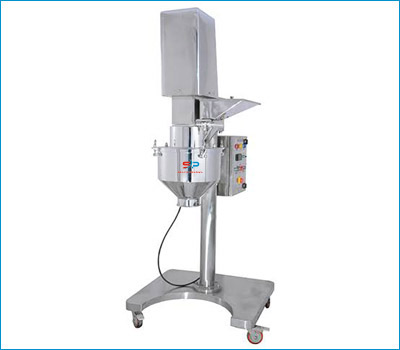

Multi Mill

  • 4.50
Capacity : 1HP,3HP,5HP TO 15 HP

Application :

Multi Mill is widely used for wet and dry granulation, pulverisation etc. in Pharmaceuticals, Chemicals, Cosmetics, Ceramics, Colours, Dyestuff, Food products etc. It also finds application in Pesticides, Fertilizers, Spices, Detergents, Insecticides, Plastic and Resins Industries.
It operates on the principle of variable force swing beaters having both knife and impact edges rotating within a selected screen to get the required size reduction. Material fed in the hopper, goes down to the processing chamber where it moves to the periphery and passes through the screen radially and tangentially. Finally the processed material gets collected in the container kept below the processing chamber.

Salient features :

  • cGMP construction with easy dismantling of product contact parts for ease in cleaning
  • Designed for continuous operation
  • Cylindrical screen for higher output.
  • Castors provided for mobility.
  • Flame Proof or direct driven machine with VFd can be provided upon request
  • Direction of beaters can be changed by reversible switch from knife to impact forward and vice-versa.
  • Direction of the beater can be changed by reversible switch for knife-edge & vice versa.
  • SS 316 beaters and scrapper blades
  • PLC based operations with color HMI (Optional)
  • Available in STD / GMP / cGMP & Lab Models.
  • Beaters/scraper blades are hardened for a specific application.
